Stripping the Engine Down

With the engine safely out of the car, today’s job was all about stripping away the extras and getting down to the important parts.

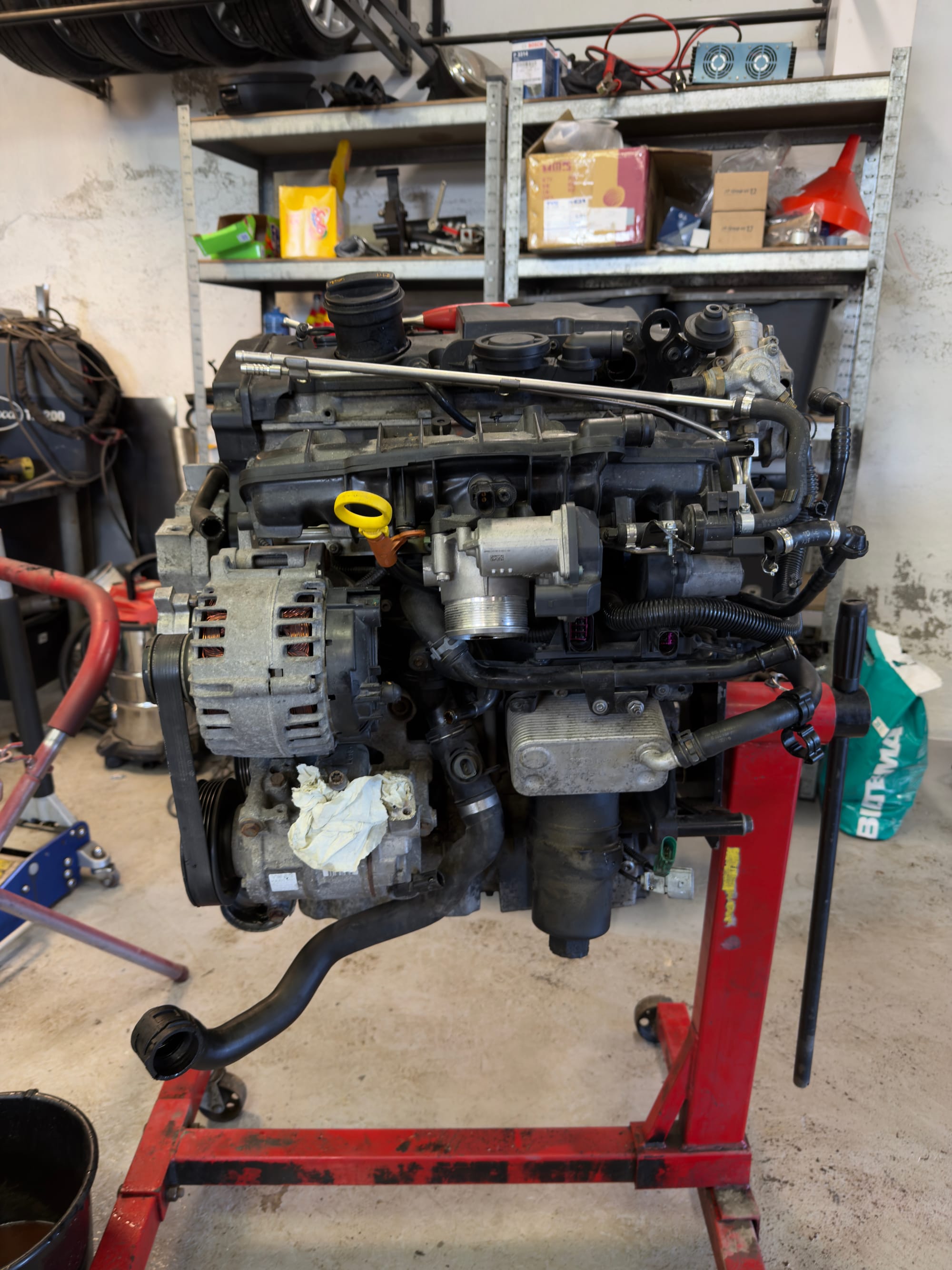

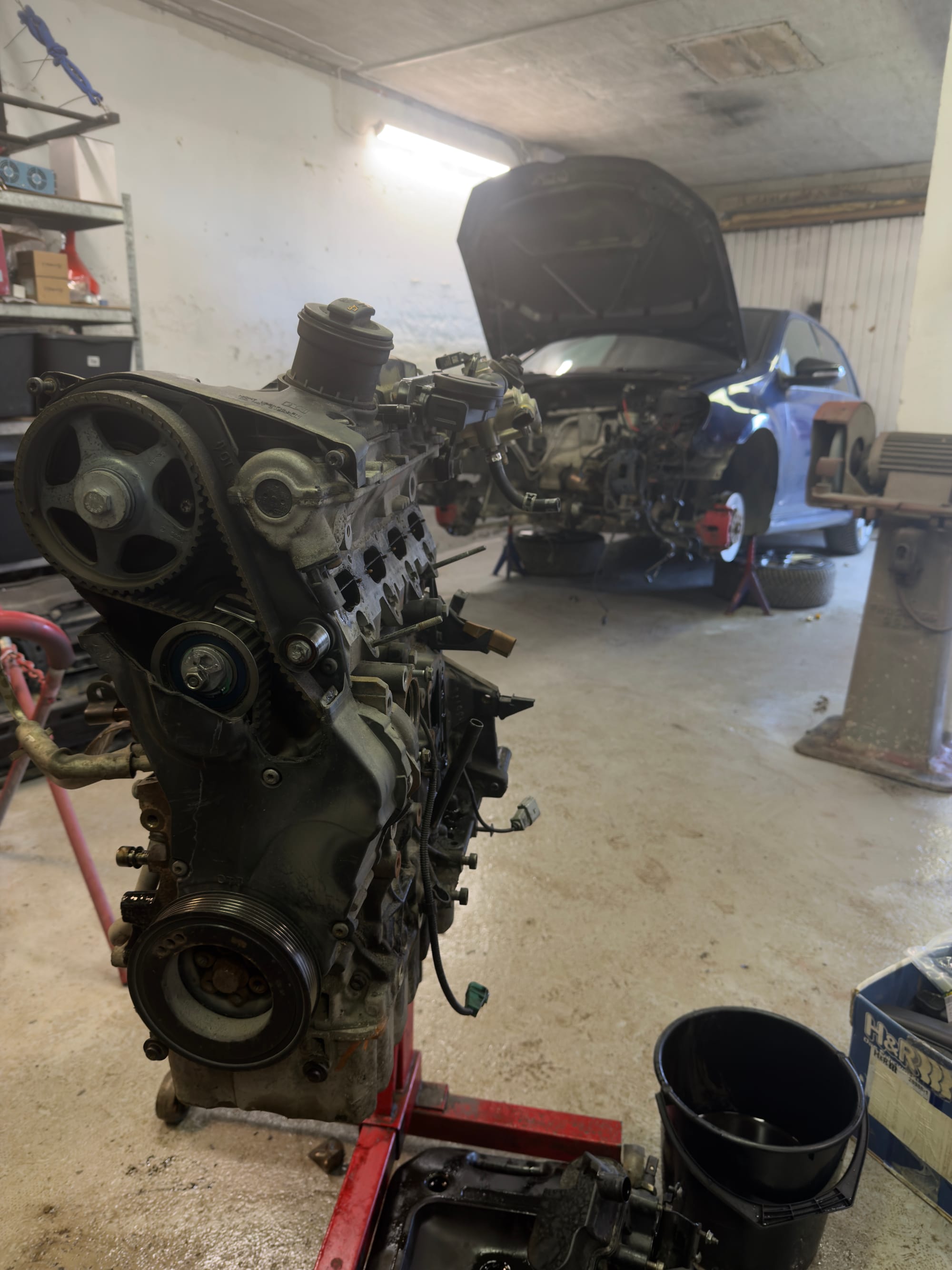

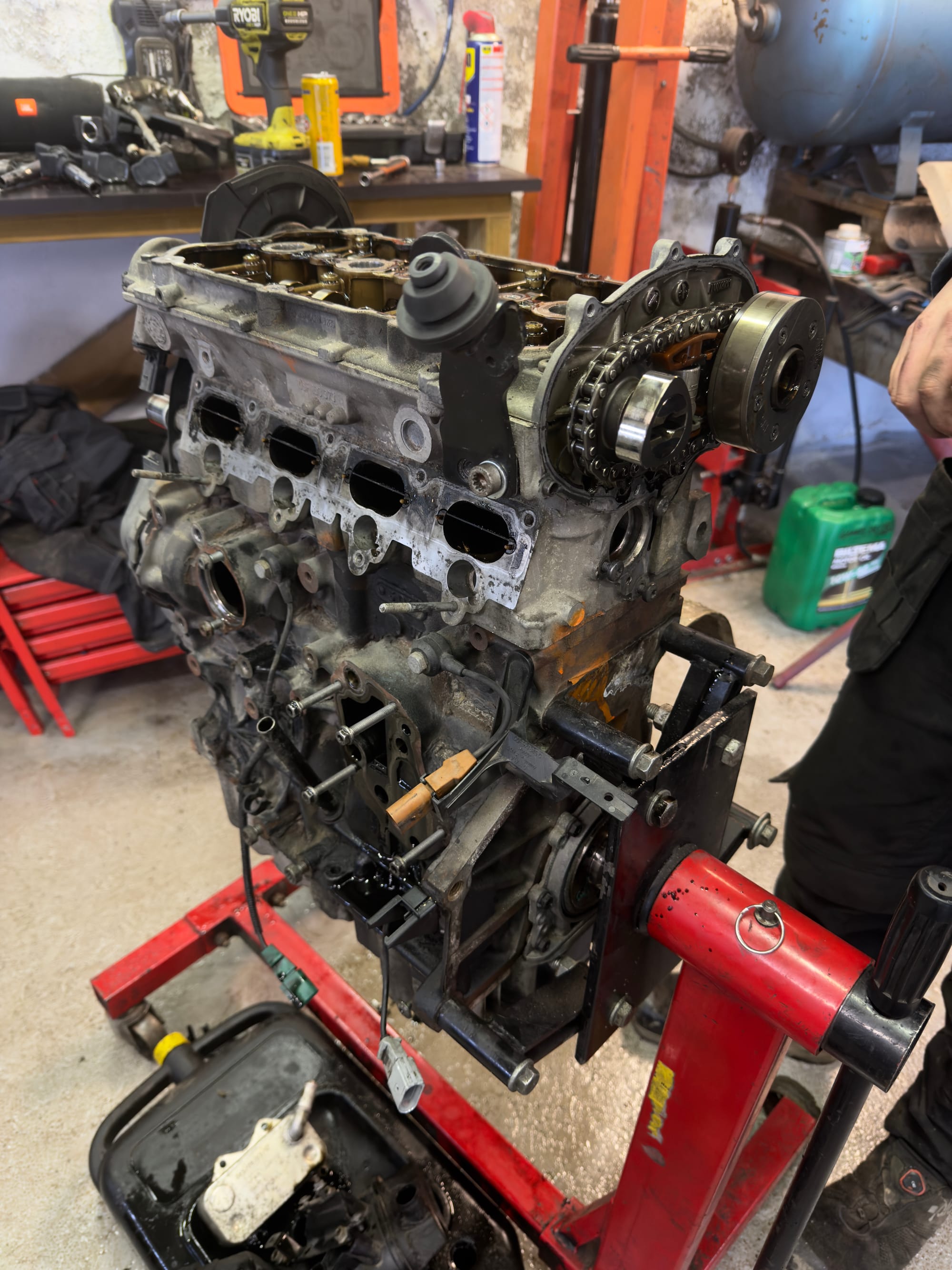

By the end of the day, the engine was pretty much down to just the cylinder head, the block, and the oil pan. Everything else has been coming off piece by piece — intake manifold, exhaust manifold, turbo, alternator, oil cooler, temperature sensor, brackets, hoses, and all the other bits that make the engine look a lot more complete than it really is.

A lot of today was honestly just careful disassembly. There wasn’t really one big dramatic moment, just a lot of steady progress. Removing parts, sorting them, checking their condition, and making sure everything stays organized as we go.

That last part is especially important on a job like this. Every bolt, screw, and bracket is being put back where it belongs or stored with the part it came from. It takes a bit more time now, but it should save a lot of frustration later when the engine starts going back together.

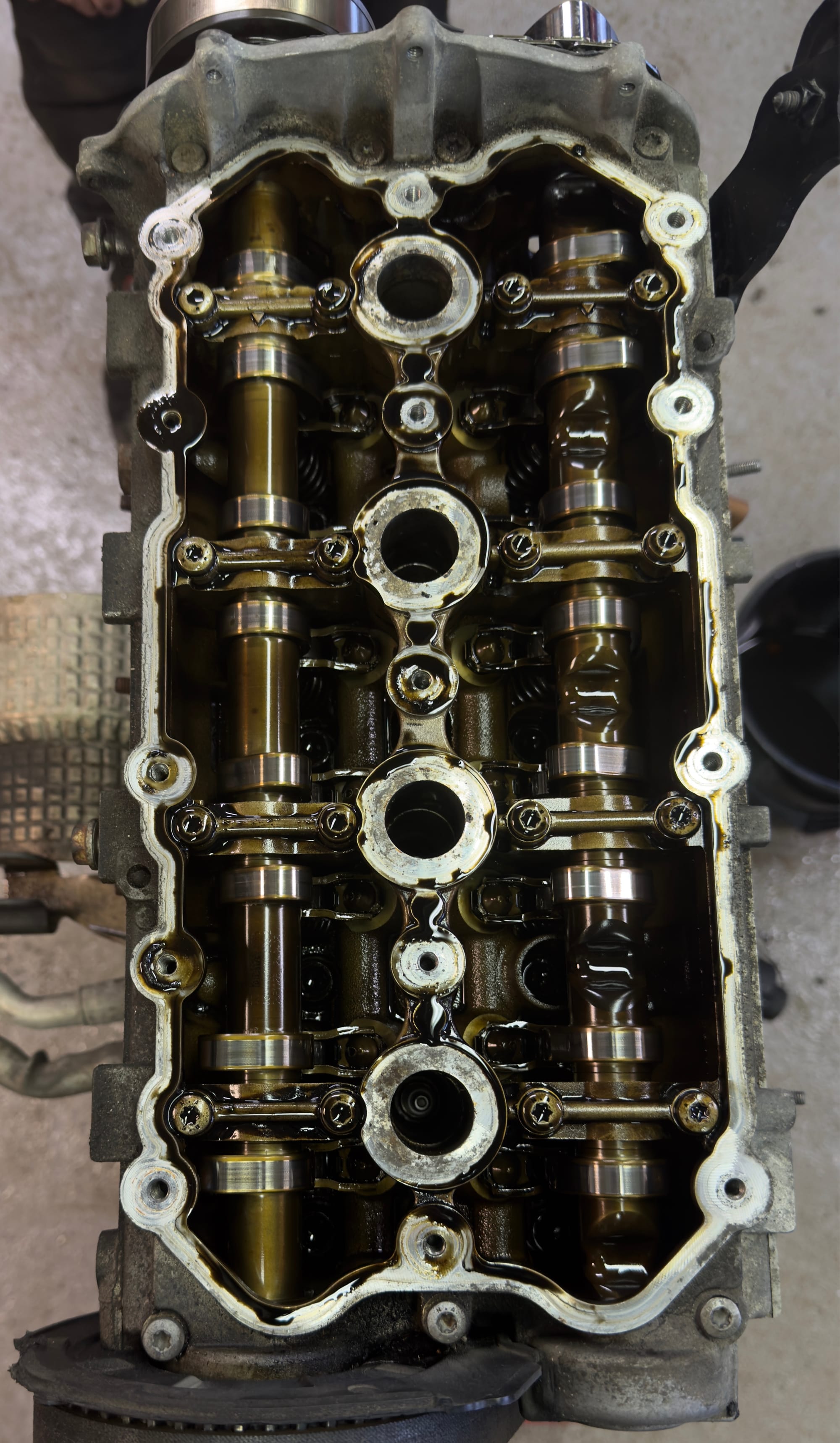

Once we had most of the outside components removed, we took off the valve cover and had a look inside. Thankfully, everything there looked pretty decent at first glance. No immediate horror stories, no obvious signs of anything catastrophic, and generally a reassuring sight considering we’re this deep into the engine now.

Of course, the next area we opened up was a bit more interesting.

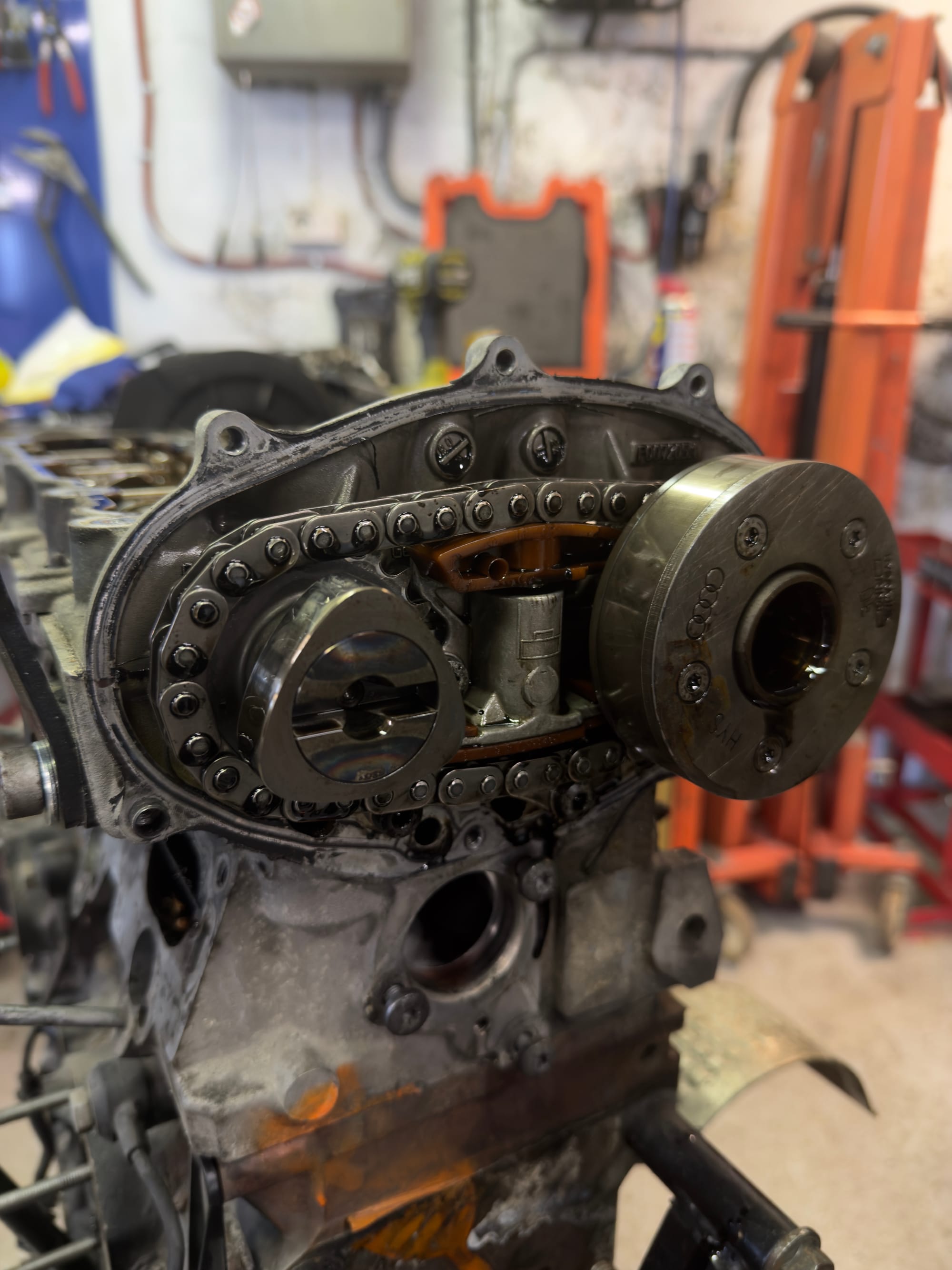

We removed the timing chain cover to inspect the timing assembly, and that definitely gave us something to look at. The chain is loose and clearly not being tensioned properly, which means the tensioner is done and needs replacing.

Luckily, this wasn’t exactly a surprise. We already expected this might be an issue, so we’ve already bought a new timing chain and tensioner. It’s always nice when the parts you need are already sitting there waiting instead of turning into yet another thing to order.

So while the timing setup doesn’t look great, at least it confirms we were right to go this far into the engine in the first place.

Other than that, the day was mostly about continuing to break the engine down in a clean and methodical way. It may not be the most exciting part of the overhaul, but it’s one of the most important. There’s a big difference between tearing an engine apart and disassembling it properly, and we’re trying to make sure this project stays on the right side of that line.

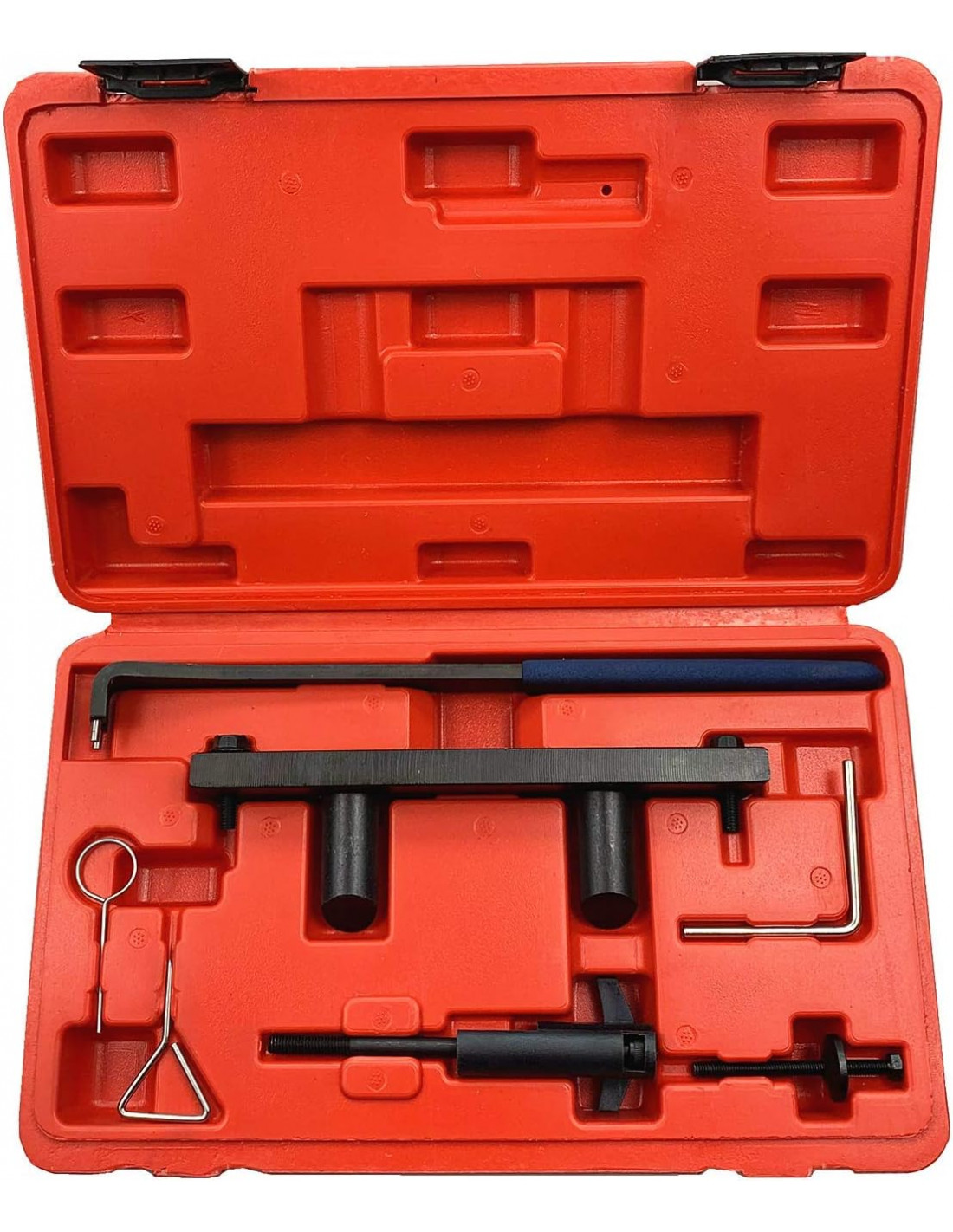

At the moment, we’re waiting on the timing tools we need before we can go any further with the chain and timing components. Without those, it doesn’t make much sense to force the next step.

In the meantime, there’s still plenty to do. We can start cleaning parts, checking their condition properly, and figuring out what can be reused and what needs to be replaced. That should also help me build a more complete parts list before reassembly starts.

So, not the most dramatic update, but definitely a productive one. The engine is getting barer by the day, and we’re getting closer to the point where we can properly inspect the important stuff.

Hopefully the next update will have a few more answers for us.

Stay tuned for the next post.
